五层升降横移式PSH-5_五层升降横移式

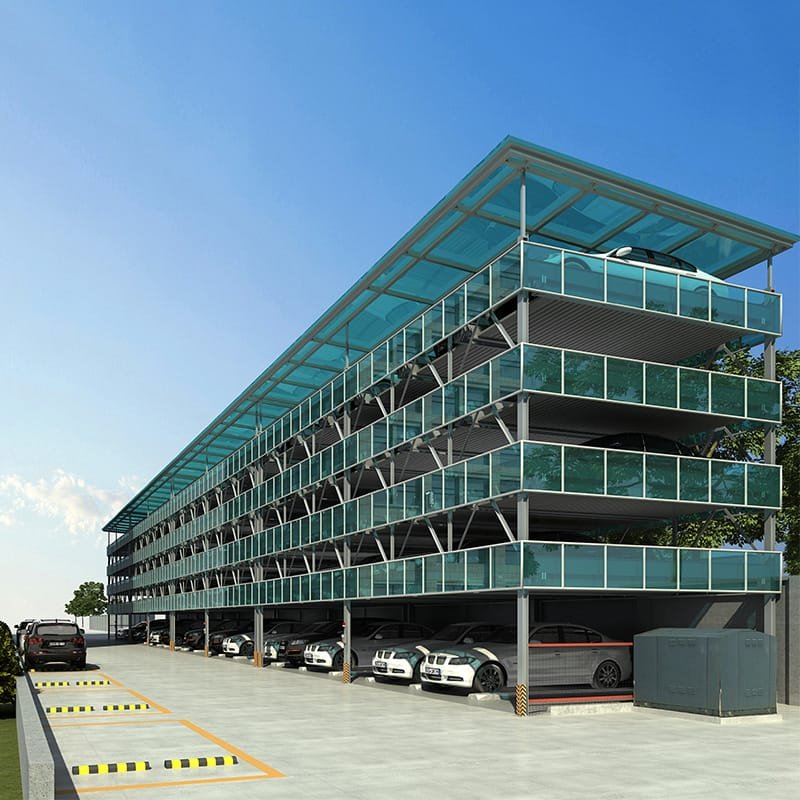

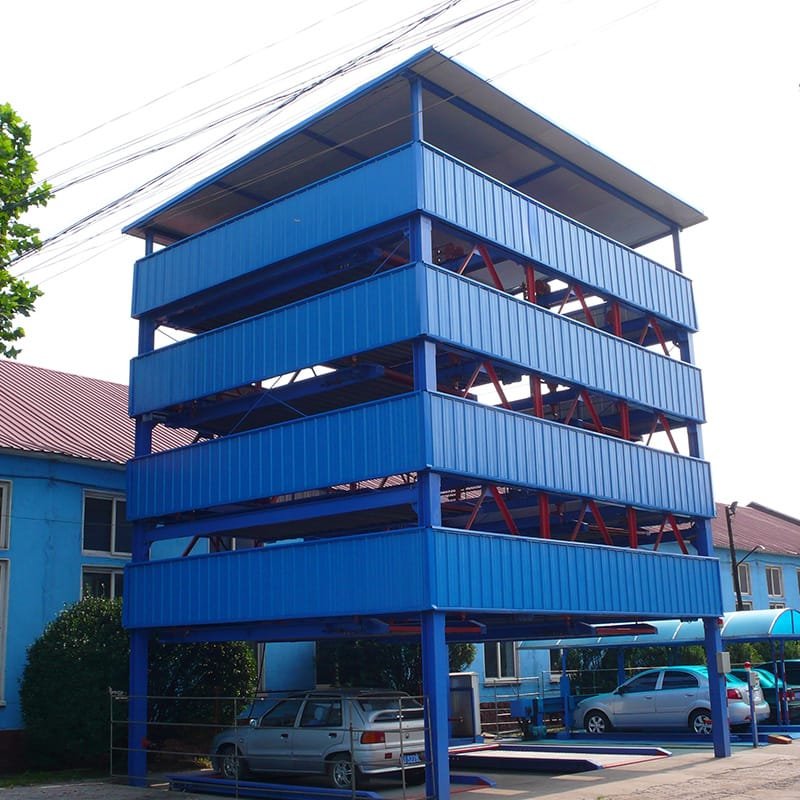

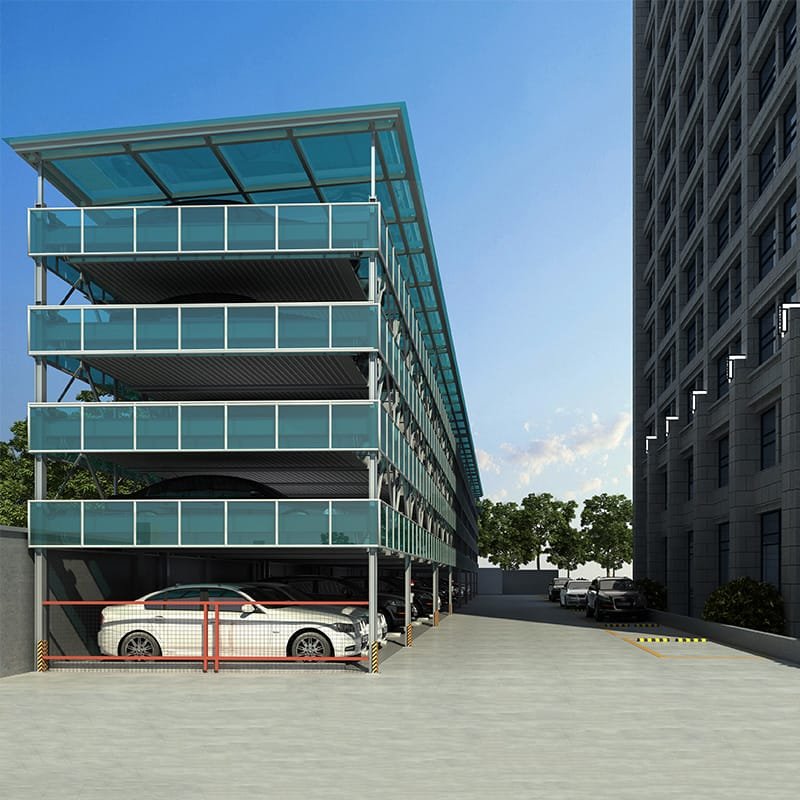

Five-story lifting and traversing PSH-5

Inquire Now

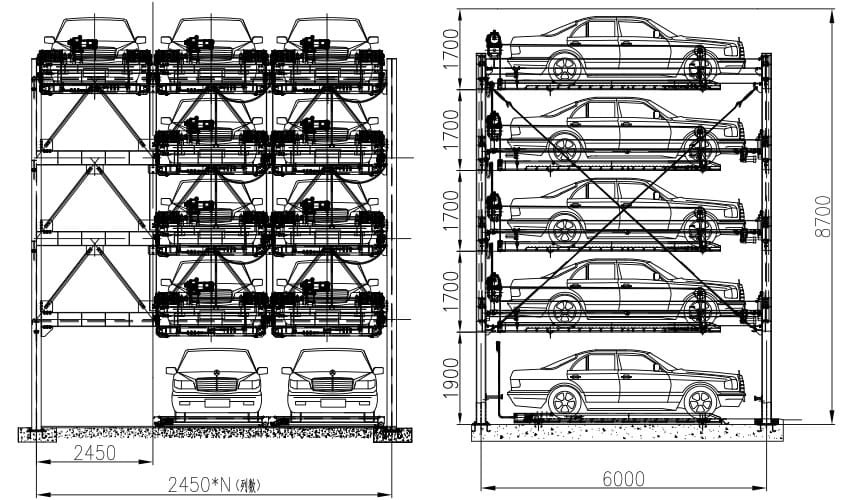

Vehicle dimensions	5000mm×1850×1550 (specifically adjusted according to the actual size on site)
Vehicle quality	≤2000kg
Equipment installation clear height	Five stories ≥ 8700mm; six stories ≥ 10400mm
Rated speed	Lifting speed ≥ 4m/min, Lateral speed ≥ 8m/min
Motor power	Lifting motor 2.2kw for second and third floors Lifting motor 3.7kw for 4-6 floors Translation motor 0.2kw
Drive mode	Motor wire rope
Operation mode	Key, card swipe
Power requirements	Three-phase five-wire 380V/50HZ
Safety device	Anti-falling, anti-vehicle, emergency stop and nearly 20 other types
