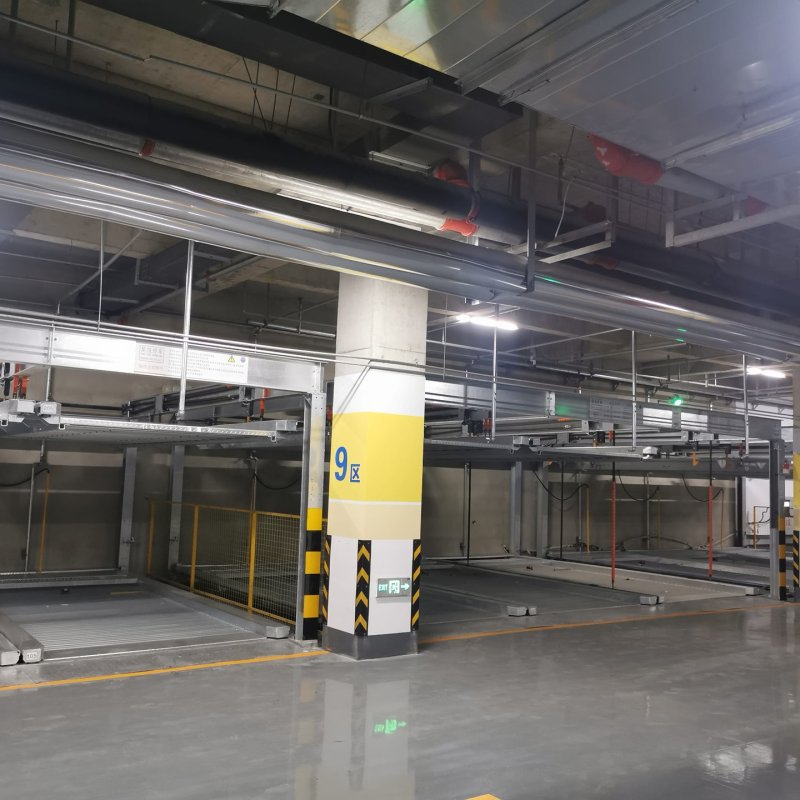

PSH-3-D1 (Negative-1 Positive-2)

Inquire Now

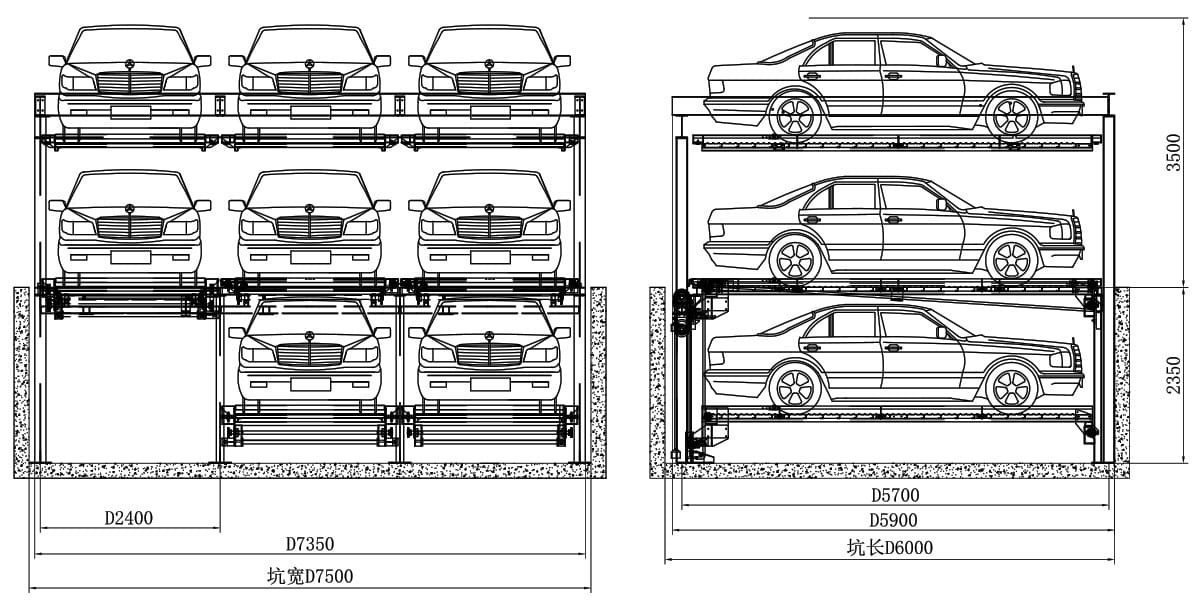

Vehicle dimensions	5000mm×1850×1550 (specifically adjusted according to the actual size on site)
Vehicle quality	≤2000kg
Equipment installation clear height	pit depth ≥ 2000mm Ground height ≥ 3600 mm
Rated speed	Lifting speed ≥ 4m/min, horizontal speed ≥ 8m/min
Motor power	hoist motor 2.2kw, travel motor 0.2kw
Drive mode	Motor chain
Operation mode	Key, card swipe
Power requirements	Three-phase five-wire 380V/50HZ
Safety device	Anti-falling, anti-vehicle, emergency stop and nearly 20 other types
